Knock on effect of moving steering damper?
« on: July 28, 2010, 10:57:14 »

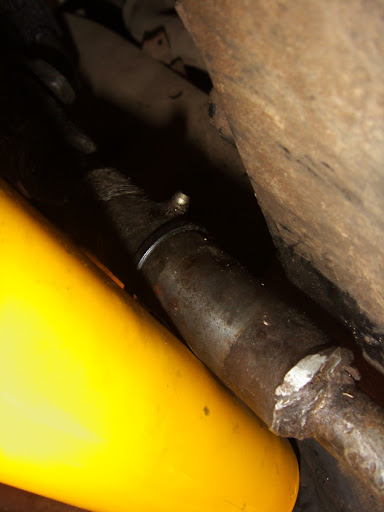

I have a superwinch PTO driven winch fitted. The driveshaft come forward to the winch under the front crossmember and over the top of the steering damper. I have lived with it having a slight contact there on steering damper cover but since have changed the damper for a non standard one and the gap is too tight now.

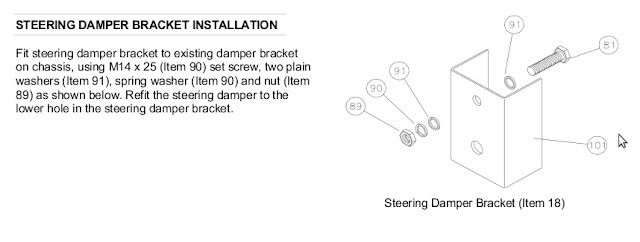

In the official superwinch to landrover fitting instructions it shows the addition of a drop down bracket made of C section fitted over the existing bracket.

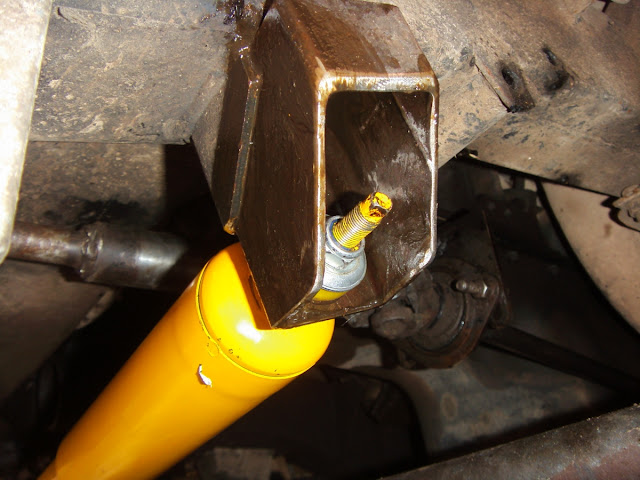

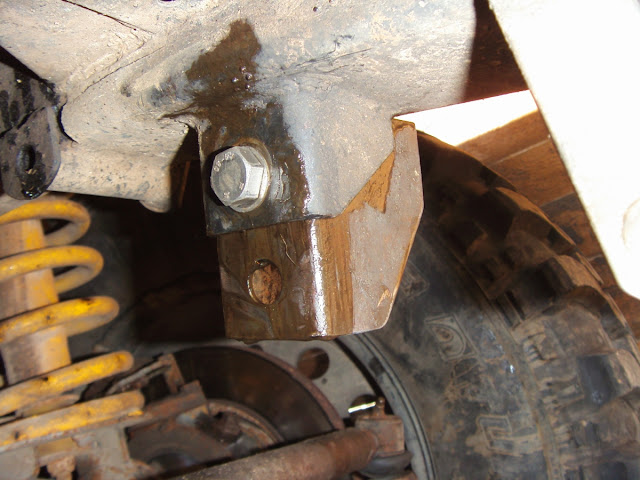

I never had that bracket so have made this one today to drop the mount point.



My question is, what (if any) side effects on suspension/steering would this relocation have? Anything to worry about?

Logged
.swonk eno oN .esoht dna eseht ,siht dna taht ,wollof ot selur emos teg eW

Offline topless matt

  • Posts: 503
  • Attack: 100
    Defense: 100
    Attack Member
  • Karma: +0/-0
  • Referrals: 0
Re: Knock on effect of moving steering damper?
« Reply #1 on: July 28, 2010, 18:05:58 »
No difference at all because it doesnt change the length of the damper, only the angle.
Logged
300tdi, southdown snorkle, tubular bumper, tds winch with dyneema, tree sliders, 6 spotlights, creepy crawler tyres, 2" lift, dislocation cones, dropped mounts all round, wide angle propshafts, mud dash, bucket seats

Likes to eat badgers

Offline Artwigwa

  • Posts: 162
  • Attack: 100
    Defense: 100
    Attack Member
  • Karma: +0/-0
  • Referrals: 0
Re: Knock on effect of moving steering damper?
« Reply #2 on: July 28, 2010, 18:45:50 »
Nice job you made there of the bracket!  :D

Logged

Offline bogie

  • Posts: 695
  • Attack: 100
    Defense: 100
    Attack Member
  • Karma: +0/-0
  • IF IT AINT GOT LEAFS,ITS NO GOOD!!!!!!!!
  • Referrals: 0
Re: Knock on effect of moving steering damper?
« Reply #3 on: July 29, 2010, 21:48:44 »
Nice little bit of fabrication!!
Logged
1968 SERIES 2A ,200TDI TUNED,RANGE ROVER AXLES,ONE TON SHACKLES,CPC PARAS,ES3000,POLYBUSHED,ANACONDAS.                     1970 SERIES 2A, 200TDI TUNED,5 SPEED LT77 WITH LT230S TRANSFER BOX 1.211 RATIO.ZEUS DISKS ALLROUND.ES3000,MODIFIED 90 TANK,3.5 DIFFS.

Offline Range Rover Blues

  • Moderator
  • ***
  • Posts: 15218
  • Attack: 100
    Defense: 100
    Attack Member
  • Karma: +3/-0
    • South Yorkshire
  • Referrals: 0
Re: Knock on effect of moving steering damper?
« Reply #4 on: July 31, 2010, 01:12:50 »
It might make the drag link spin around a little.  I fitted a Defender drag link and damper and I find the pressurised damper forces the drag link to spin, not a problem except it can trash the balljoint boots.
Logged
Blue,  1988  Range Rover 3.5 EFi with plenty of toys bolted on
Chuggaboom, 1995 Range Rover Classic
1995 Range Rover Classic Vogue LSE with 5 big sticks of Blackpool rock under the bonnet.
